Another Level of Automation

Mordomus offers a wide range of features applicable to buildings of any type and size.

Illumination

Blinds

Alarms

Surround Sound

Presence Simulation

Ventilation

Energy Management

Weather Monitoring

Motion Sensors

Heating

APP

Security

RGBW

Notifications

Dimming

Irrigation

Solar Panel Management

Cooling

Gateways

Auto-configuration

In addition to these incredible features, many more await you.

CPU

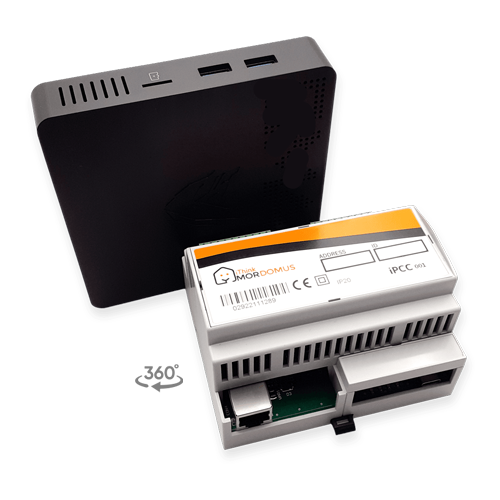

iTHINK-G4

All devices connect to the iTHINK via MDiBUS, supporting up to 3000 command addresses. With 8 digital inputs for security sensors and energy meters, as well as 8 relay outputs, automation is fully integrated. Enjoy connectivity through HDMI, VGA, USB 3.0, USB 2.0, dual-band Wi-Fi, and audio output. Installation is straightforward with DIN rail mounting or non-standard screws. Transform your home with Mordomus by adjusting illumination, HVAC, blinds, and more for a perfect environment. With Mordomus, the future of your home starts now.

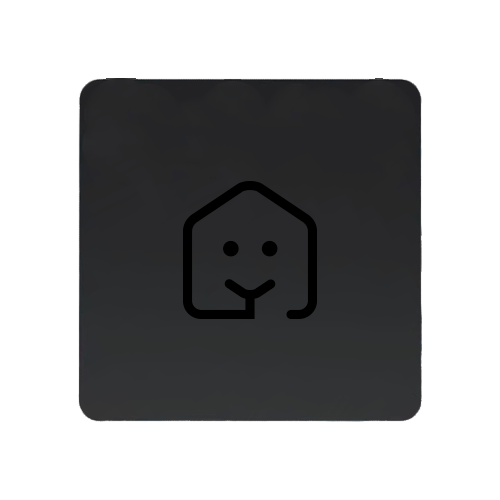

iThink-Lite

The iThink-Lite is a CPU specifically designed for existing homes where running cables is not feasible. Fully compatible with Mordomus Wi-Fi devices, the iThink-Lite allows you to automate and control your home efficiently without the need for additional infrastructure.

With it, you can integrate and manage all your smart devices via Wi-Fi, maintaining the simplicity and flexibility your home requires. The iThink-Lite is the perfect solution for modernising your space, providing the convenience of automation without the hassle of cable installation.

Controllers

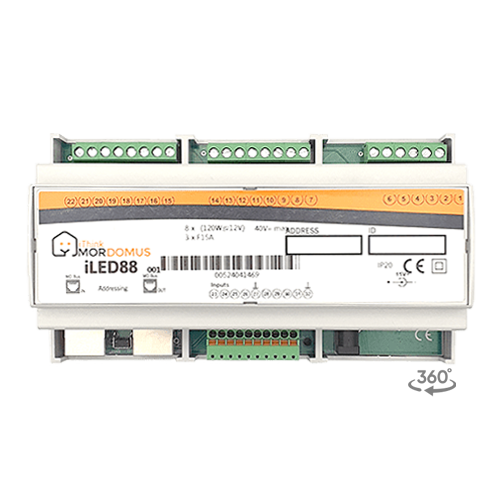

iLED88

The iLED88 offers precise management of illumination, allowing you to adjust the intensity of LED lights and control the colour of RGB (multicoloured) lights. Connected via MDiBus, it features 8 configurable digital inputs for security sensors and status readings, and 8 output channels for detailed lighting control. Easily installable on a DIN rail, it transforms the atmosphere of your home with lights that adjust to your needs and preferences. With the iLED88, perfect illumination is within your reach.

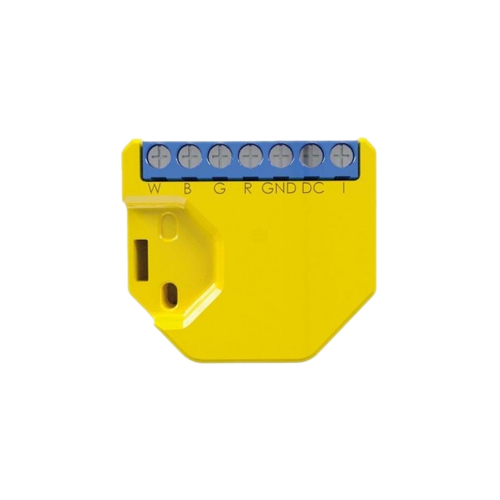

iLED41W

The iLED41W easily connects like any LED strip controller, allowing you to adjust lights, change colours, and save favourite scenes directly in the app. Compatible with white LED strips, RGB, RGBW, and 12V and 24V lamps, it supports up to 288W of power. It features a power meter, control via the app, voice assistants (Google/Alexa), and other platforms. With an integrated web server and Wi-Fi connection, the iLED41W is user-friendly, ensuring guaranteed personalisation.

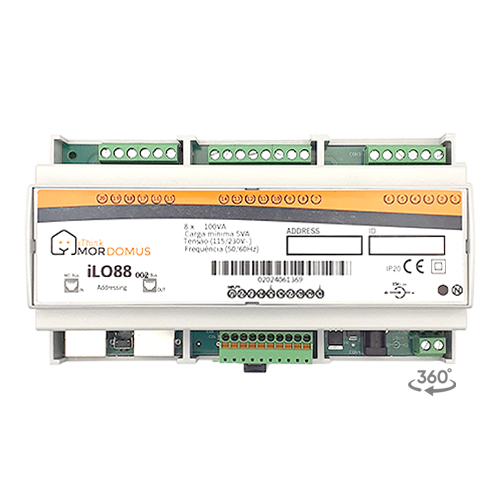

iLO88

The iLO88 is the ideal solution for sophisticated and efficient lighting control. Connected via MDiBus, this module offers advanced management with 8 configurable digital inputs for key readings, security sensors, and energy meters. Featuring 8 dedicated output channels, the iLO88 controls LED lighting at 110/220VAC, ON/OFF, supporting up to 100W and 250A peak. Easily installable on a DIN rail, it allows you to adjust the intensity of your illumination with precision, enhancing both comfort and functionality in your home. With the iLO88, every detail of your illumination is within your reach.

iOW88

The iOW88 is not only ideal for controlling blinds and exterior illumination but also offers extensive versatility for other devices. In addition to managing blinds and lights, this module allows for the control of sockets, windows, and connected devices such as security sensors through its 8 configurable digital inputs. With multiple operating modes, it can control up to 4 windows, ensuring complete integration with the Mordomus system. Installed on a DIN rail, the iOW88 is the perfect solution for total and customised control of your home or business.

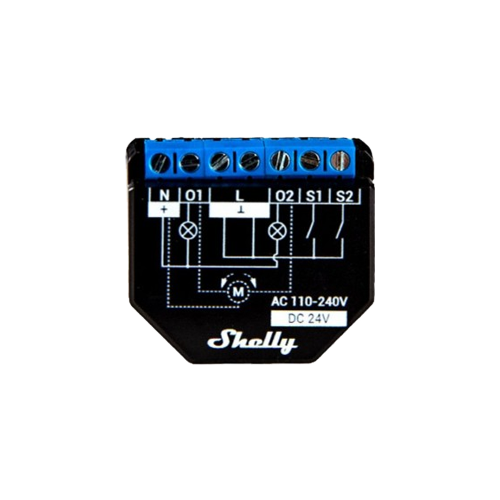

iOW22MW

Small and compact, the iOW22MW is a smart Wi-Fi device, ideal for automating electric blinds or controlling two independent lighting channels. It provides accurate measurement of consumption per channel and independent control to ensure practical and efficient management.

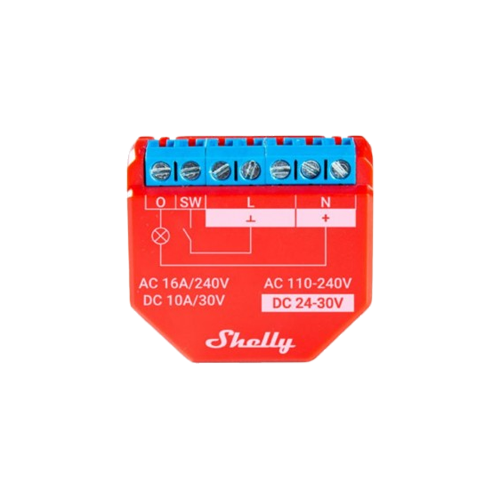

iOW11MW

The iOW11MW allows you to control and measure consumption with maximum precision across a wide range of devices, such as household appliances, making it ideal for home or office use. It supports up to 16A of load (AC) and provides real-time measurement. Perfect for controlling illumination, electrical sockets, and more, it ensures optimised safety with overheating and overload protection. Installation is simple and quick.

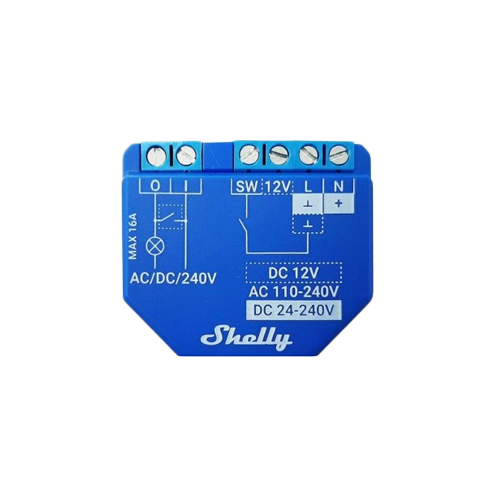

iOW11W

With dry contacts, the iOW11W is ideal for the remote control of a wide range of devices and electrical equipment, offering great flexibility in connections. It can be used to control garage doors, turn lamps, LED strips, sockets, and many other appliances, easily adapting to your needs.

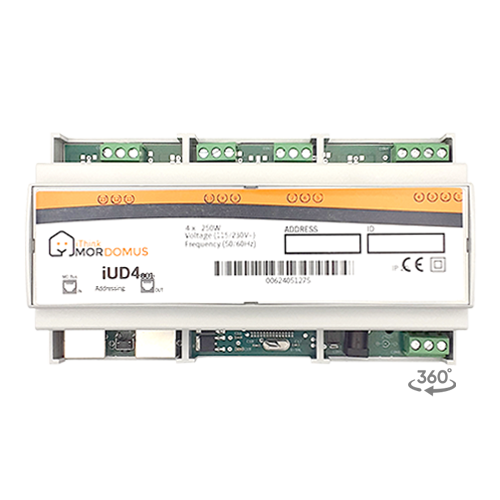

iUD4

The iUD4 is a module designed to control the light intensity of halogen and LED lamps, providing the perfect illumination adjustment for any environment. With 4 outputs and MDiBus communication, this device enables customised and efficient illumination, adapting to your needs in real time. Ideal for DIN rail installation, the iUD4 integrates seamlessly into the Mordomus system, offering complete and precise control of illumination, ensuring comfort and energy savings.

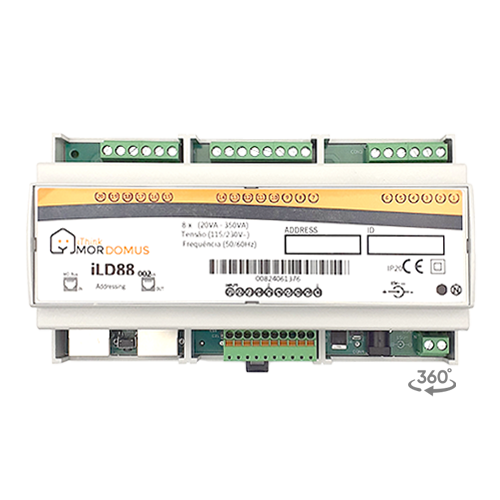

iLD88

The iLD88 is a versatile and powerful module, ideal for precise control of small motor speeds, fans, and the intensity of halogen lamps. With 8 configurable digital inputs, the iLD88 allows for the reading of switches with various touch types, as well as monitoring safety equipment like PIR sensors, gas detectors, and fire alarms. Featuring MDiBus communication and DIN rail installation, this device integrates seamlessly into the Mordomus system, offering complete and adaptable control to meet your environment's needs, ensuring both efficiency and safety.

iRM8

The iRM8 is an essential module for efficient and flexible automation within the Mordomus system. With MDiBus communication and DIN rail installation, the iRM8 ensures seamless integration with the iThink, providing direct and reliable control. It features 8 inputs for direct contacts, making it easy to connect with various open collector outputs from the iThink. Its versatile outputs allow for the switching of sockets, heating boilers, motors, illumination, and other general loads. This module is ideal for comprehensive energy and equipment management, ensuring practicality and efficiency in any installation.

iOC66

The iOC66 is ideal for controlling gates and solenoid valves. With MDiBus communication and DIN rail installation, this module features 6 configurable digital inputs for various functions, such as reading buttons and security equipment. Its 6 outputs can control loads up to 2A, including heating systems, air conditioning, and small motors. The iOC66's versatility and efficiency make it a robust solution for the automation and management of essential systems in your home or building.

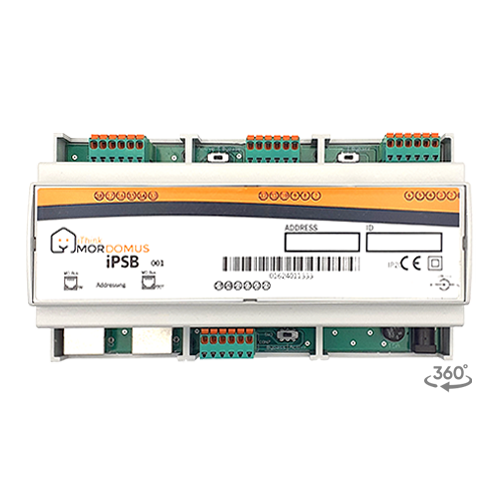

iPSB

The iPSB is essential for expanding and distributing the MDiBus in systems outside electrical panels that do not use RJ45 standards. With MDiBus communication and DIN rail installation, this module facilitates the direct connection of conductors to the iMeteo, iMS6, iTM1, and iOCT41 modules, eliminating the need for RJ45 connectors. Ideal for integrating and expanding your automation network, the iPSB ensures efficient communication and simplified installation, guaranteeing a robust and reliable connection throughout the system.

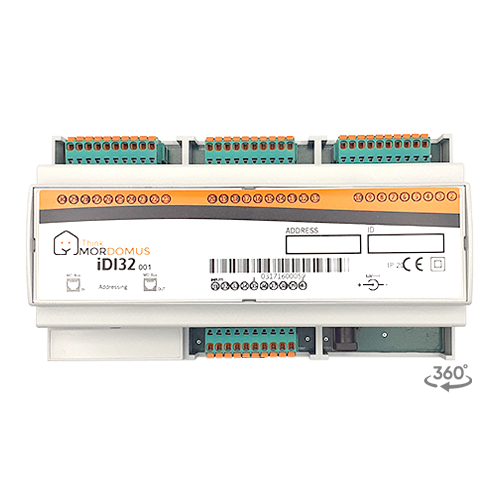

iDI32

The iDI32 is a robust digital input module designed to integrate up to 32 inputs via MDiBUS. With the capability to configure inputs for reading switches, security sensors (PIR, gas, fire), status indicators, and energy meters, this module offers flexibility and precision in monitoring and control. Mounted on a DIN rail, the iDI32 is ideal for applications that require comprehensive and detailed management of automation systems, providing an efficient and reliable solution for your needs.

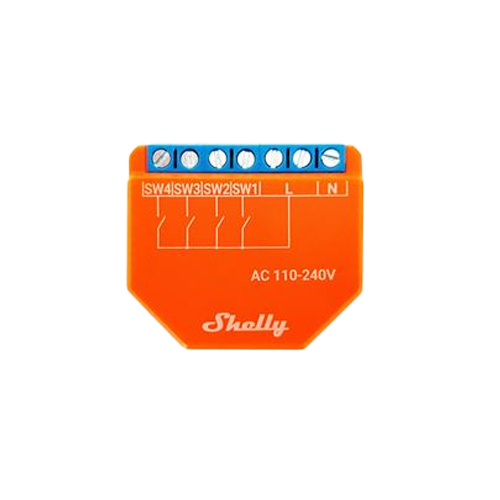

iDI4W

With the iDI4W, your switches become smart. It provides 4 input channels and features a super-fast processor. With the Multi-click functionality, it allows for up to 12 possible actions. The iDI4W is an input reader device without relays, making it ideal for customising the control of your automation.

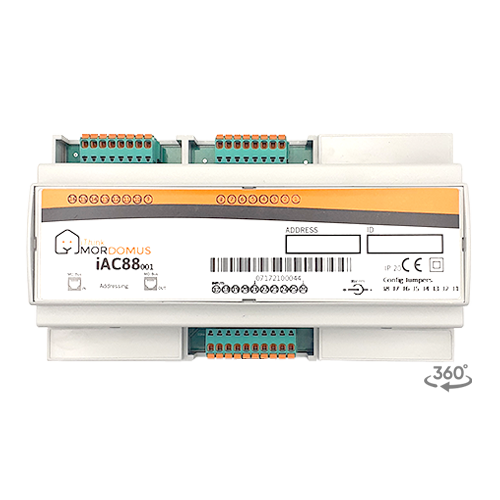

iAC88

The iAC88 is a versatile module that communicates via MDiBus, featuring 8 analog inputs for reading equipment operating with voltage outputs of 0-10V or 4-20mA, and 8 analog outputs for controlling devices within the 0V to 10V range. Installed on a DIN rail, the iAC88 integrates seamlessly into automation systems, enabling precise and reliable control of analog equipment.

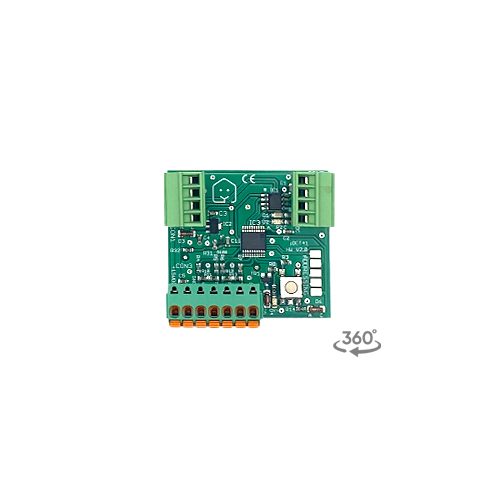

iOCT41

The iOCT41 is a compact module known for its flexibility and easy installation in junction boxes or switch boxes. With MDiBUS communication, it offers 4 configurable digital inputs for reading switches (supporting 3 types of presses), monitoring safety equipment such as PIR, gas, and fire sensors, as well as status reading. It also features an open-collector output, ideal for controlling various devices, ensuring efficient integration and safety in automation systems.

iOW12MW

The iOW12MW is a Wi-Fi energy meter that allows for the monitoring of up to 2 independent circuits (powered by the same phase). It is the ideal device for measuring overall consumption in your home (in single-phase installations) and solar production, among other applications.

Sensors

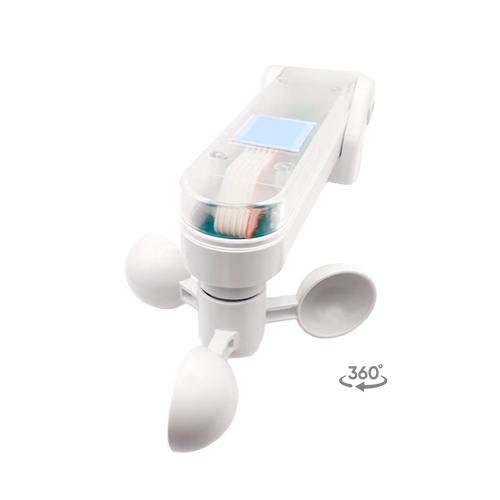

iMETEO

The iMeteo is an advanced weather station designed for outdoor installation, communicating via MDiBUS. Equipped with sensors to monitor temperature, light levels, wind intensity, and rainfall detection, the iMeteo provides precise, real-time weather data. This information is crucial for optimizing the management of climate control systems and automated blinds, ensuring the comfort and energy efficiency of your home.

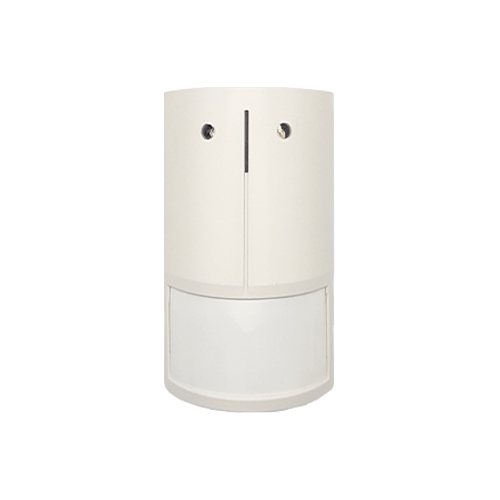

iMS6

The iMS6 is a multifunctional indoor sensor that communicates via MDiBus. Equipped with 15 infrared inputs, light, motion, and tamper sensors, this device provides comprehensive environmental monitoring. With 50 infrared outputs, the iMS6 enables efficient control of multiple devices, making it ideal for optimizing automation in both residential and commercial environments.

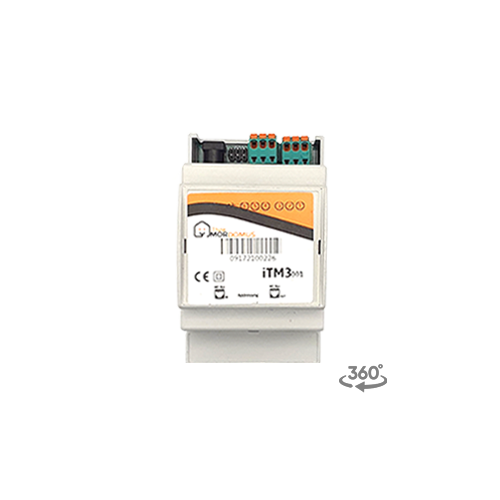

iTM3

The iTM3 is a temperature measurement module known for its precision and versatility. Communicating via MDiBus, the iTM3 features three inputs for reading either resistance temperature detectors (RTDs) such as PT100 or PT1000, or digital temperature sensors like the DS18B20, ensuring accurate thermal condition monitoring. Ideal for DIN rail installation, this module provides an effective solution for temperature management in both residential and industrial automation systems, offering rigorous and efficient control.

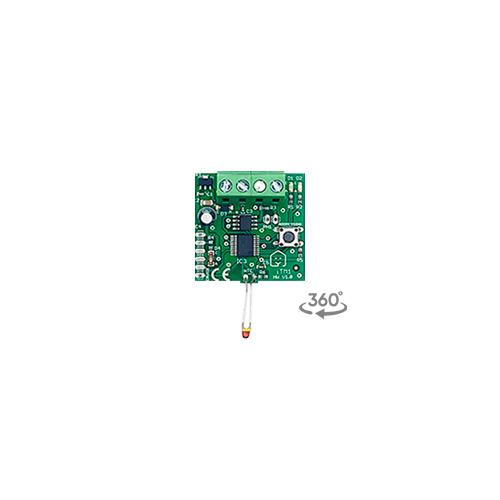

iTM1

The iTM1 is a compact and efficient temperature sensor, ideal for integration into automation systems. Communicating via MDiBus, the iTM1 features one input for a temperature sensor and can be installed in switch boxes or any other location exposed to the temperature to be monitored. This sensor provides a simple and effective solution for precise temperature control in various spaces.

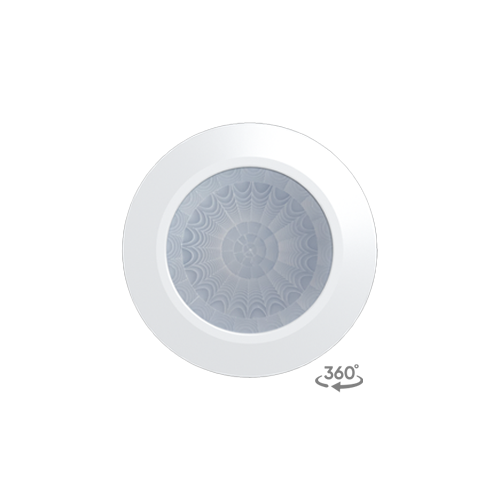

PIR-360-12V

The PIR-360-12V is a motion and intrusion sensor designed for comprehensive 360-degree surveillance. With MDiBus communication and powered by 12V, this sensor can be installed on either the ceiling or wall. Its wide coverage ensures accurate and reliable detection of movement, protecting your space from potential intrusions and maintaining a secure environment. Ideal for integration into residential or commercial security systems, the PIR-360-12V provides a robust solution for continuous protection and monitoring.

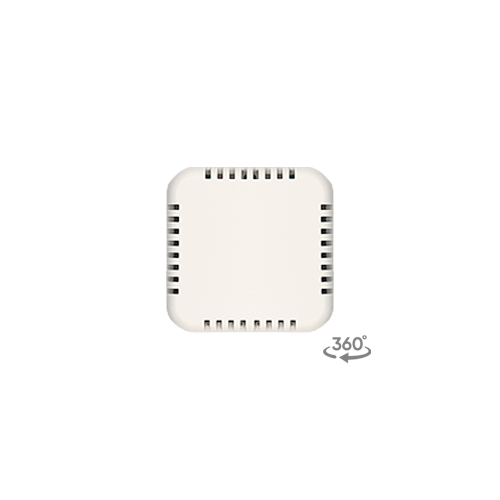

iAQ50W

The iAQ50W is an air quality sensor that monitors temperature, humidity, eCO2, TVOC, and AQI-UBA in a room, providing accurate data for a healthy environment. With this information, the Mordomus system automatically adjusts the HVAC and air extraction. Featuring Wi-Fi communication and easy installation, the iAQ50W offers intelligent and comfortable control of your home environment.

Audio

iSND8

The iSND8 is a versatile and powerful audio module, ideal for managing sound systems across various spaces. With MDiBus communication, this device features 8 independent outputs for volume and audio source, allowing for precise and customised audio control in different zones. It includes 3 generic inputs and 8 dedicated inputs, as well as an audio bypass for additional flexibility across channels. Installation can be done on DIN rail or fixed with non-standard screws, adapting easily to your setup. The iSND8 is the perfect solution for those seeking efficiency and control over audio in any environment.

iSND1W

The iSND1W is designed for already constructed homes where running cables is complicated or unfeasible. It allows for simple multimedia control with Wi-Fi communication and compact dimensions, making it possible to install it in any location.

iSND1SW

The iSND1SW was developed with already constructed homes in mind, where running cables can be a challenging or even impossible task. Its stereo capability provides a more immersive experience with fantastic sound quality. With Wi-Fi communication and compact dimensions, it is designed to be placed anywhere.

Gateways

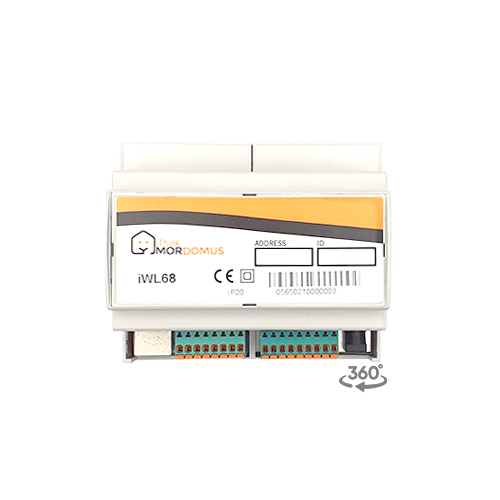

iWL68

The iWL68 is a versatile module that stands out for its communication capability via Wi-Fi, allowing for efficient remote management. This feature is crucial for operations that require continuous monitoring and control, regardless of physical proximity. Equipped with 8 open-collector outputs and 6 configurable digital inputs, the iWL68 offers flexibility in integration with various devices, such as security sensors (PIR, gas, fire), buttons with different touch types, and energy meters. Its reading and control capability ensures that all connected systems are under constant supervision. It is the ideal solution for those in need of a robust and reliable device with the convenience of remote management.

iSLS8

The iSLS8 is the perfect tool for managing Solius thermostats. With MDiBus communication, this module allows for the reading of up to 8 Solius thermostats, providing detailed and centralised control of climate settings. Its DIN rail installation ensures simple and practical integration with your Mordomus system, facilitating precise and convenient temperature management across different zones. The iSLS8 is a robust and efficient solution for maintaining your environment at its ideal point.

iDL64

The iDL64 is the ideal solution for managing DALI lighting systems. With MDiBus communication, this module supports control for up to 64 DALI outputs, ensuring precise and efficient management of your lighting installations. Its DIN rail installation facilitates integration with existing systems, providing a straightforward and simple setup. The iDL64 offers advanced and flexible control, allowing for personalised and coordinated adjustments and programming of your lighting.

iKX3232

The iKX3232 offers a robust solution for managing KNX TP1 systems. With MDiBus communication, this module can handle up to 32 inputs and outputs, centralising and simplifying the control of your devices without limiting your options. Its DIN rail installation ensures efficient integration with Mordomus, providing comprehensive and precise control. The iKX3232 is the ideal choice for projects requiring extensive and coordinated control, while maintaining the flexibility and efficiency of KNX TP1 devices.

iRZ8

The iRZ8 is the ideal solution for efficient management of Aidoo systems from Airzone. With MDiBus communication, this module enables the reading of 8 Airzone gateways via Modbus, providing precise and centralised control of the environment. Its DIN rail installation ensures easy and quick integration with your automation system, simplifying the configuration and management of climate control across various spaces. The iRZ8 combines efficiency and flexibility, making it essential for advanced and effective control of Airzone's Aidoo climate systems.
